DTU WPP CTRL

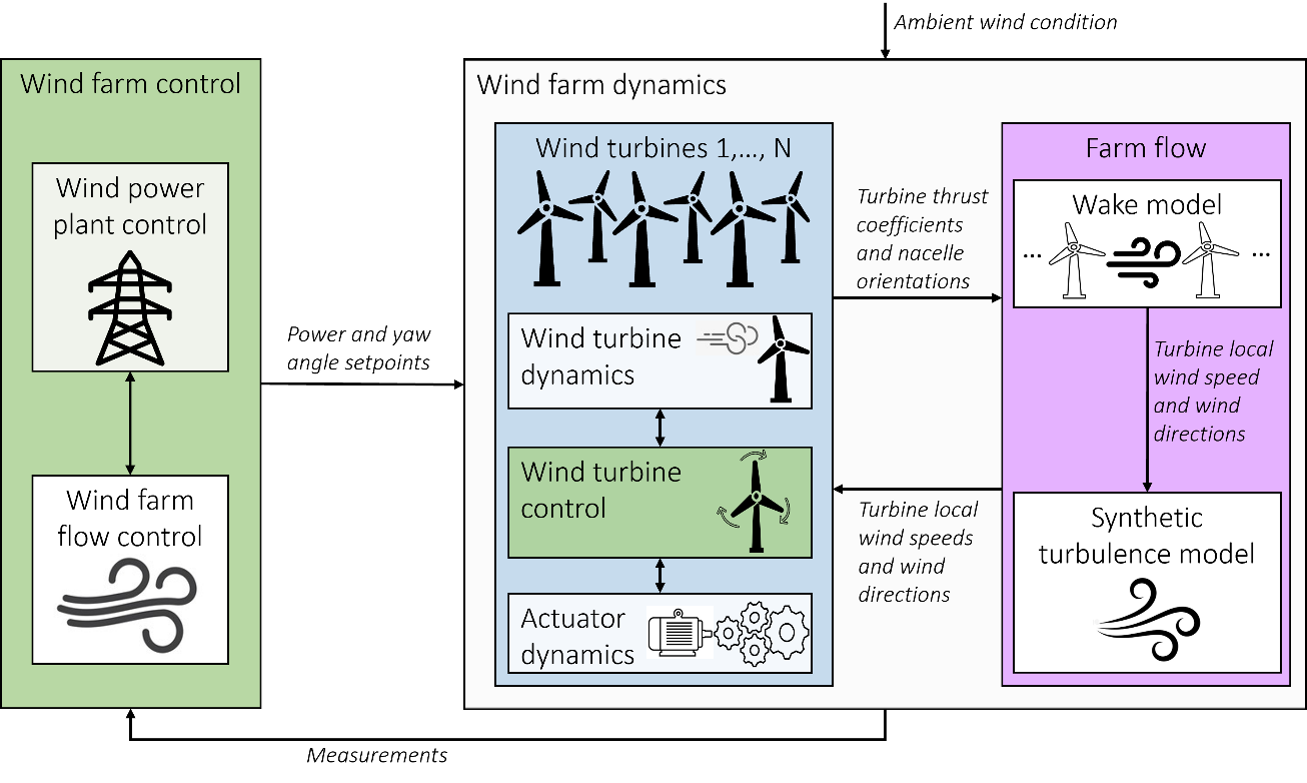

• DTU wind power plant controller
• Wind turbine 1-DOF dynamic model using tabular Cp/Ct=f(tsr,pitch,yaw,erosion)
• DTU WEC wind turbine controller including yaw actuation and servos
• Wind power plant collection system
• Wind power plant controller with MPPT, balance and delta modes
• Coupling with PyWake for quasi-steady wake effects with synthetic turbulence and wake advection

The code repository is located here.

Alternative coupling with FLORIS from CENER is located here.

Alternative coupling with FOXES from IWES is located here.

Content

• Installation
• Getting started
• Examples
  • Wind steps from cut-in to cut-out at full wake direction on an array of 4xIEA-15MW-RWT at 5D
  • Wind direction ramp from full wake, to +30deg, and back at full wake direction on an array of 4xIEA-15MW-RWT at 5D
  • Impact of erosion level on an array of 4xIEA-15MW-RWT at 5D with 48h inflow data from Horns Rev
  • Impact of erosion safe mode (20% derating) on an array of 4xIEA-15MW-RWT at 5D with 48h inflow data from Horns Rev
  • Impact of erosion safe mode (20% derating) combined with sector-based yaw misalignment on an array of 4xIEA-15MW-RWT at 5D with 48h info data from Horns Rev
• Parameters
  • Input
  • Output
  • Parameters
  • Variables
