Examples

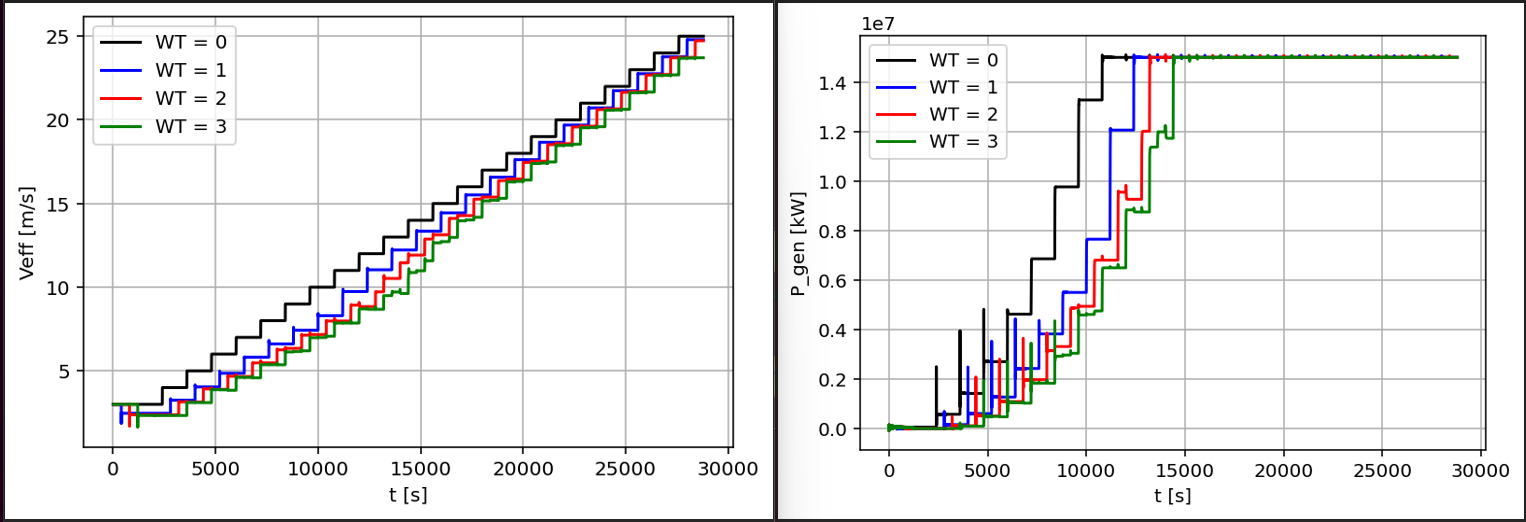

Wind steps from cut-in to cut-out at full wake direction on an array of 4xIEA-15MW-RWT at 5D

  • use input file dtu_wpp_ctrl_input_test_wind_steps.yaml
_images/wind_steps_case_results.png

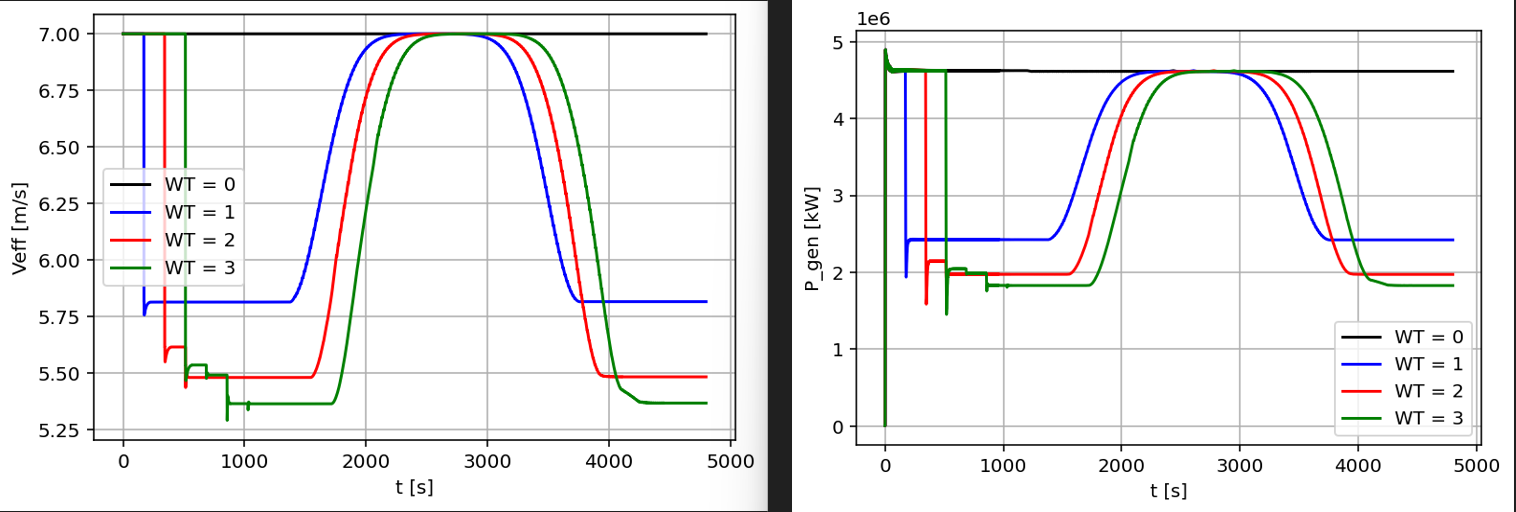

Wind direction ramp from full wake, to +30deg, and back at full wake direction on an array of 4xIEA-15MW-RWT at 5D

  • use input file dtu_wpp_ctrl_input_test_dir_ramp.yaml
_images/wind_dir_ramp_case_results.png

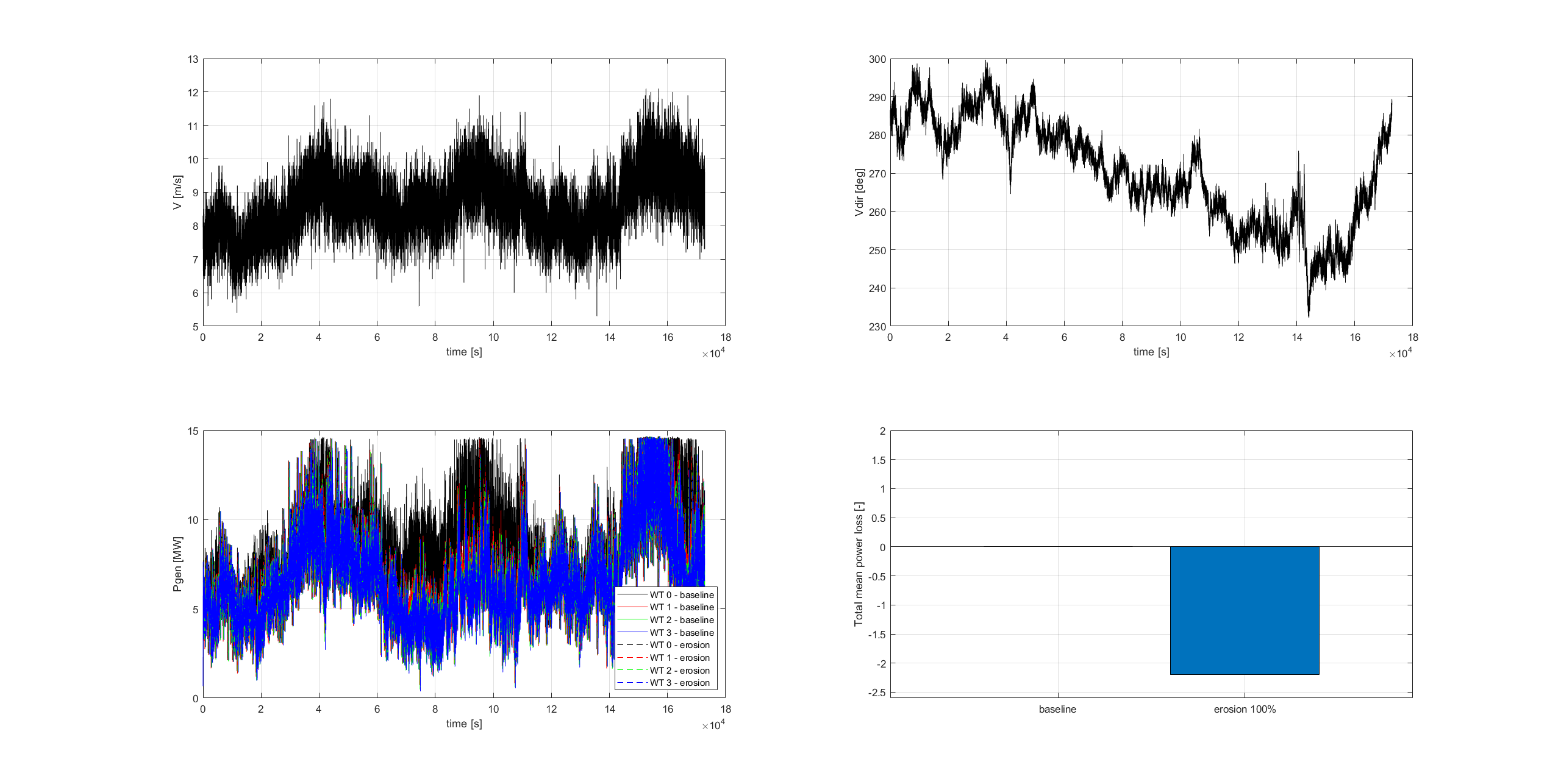

Impact of erosion level on an array of 4xIEA-15MW-RWT at 5D with 48h inflow data from Horns Rev

  • use input file dtu_wpp_ctrl_input.yaml with ‘erosion: 0.0’ and ‘erosion: 1.0’
_images/erosion_case_results.png

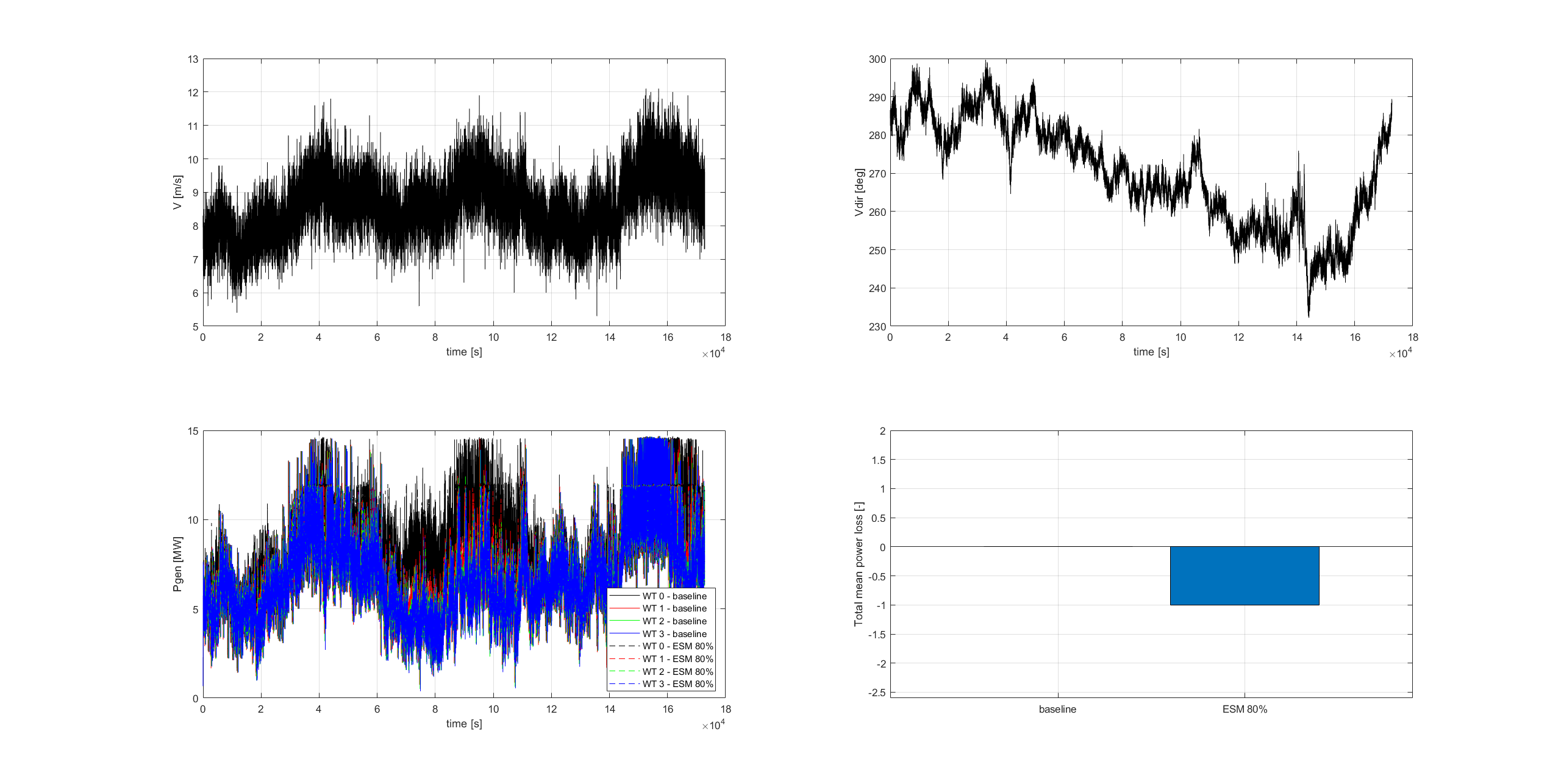

Impact of erosion safe mode (20% derating) on an array of 4xIEA-15MW-RWT at 5D with 48h inflow data from Horns Rev

  • use input file dtu_wpp_ctrl_input.yaml with ‘P_wpp_ref: 1.0’ and ‘P_wpp_ref: 0.8’
_images/esm_case_results.png

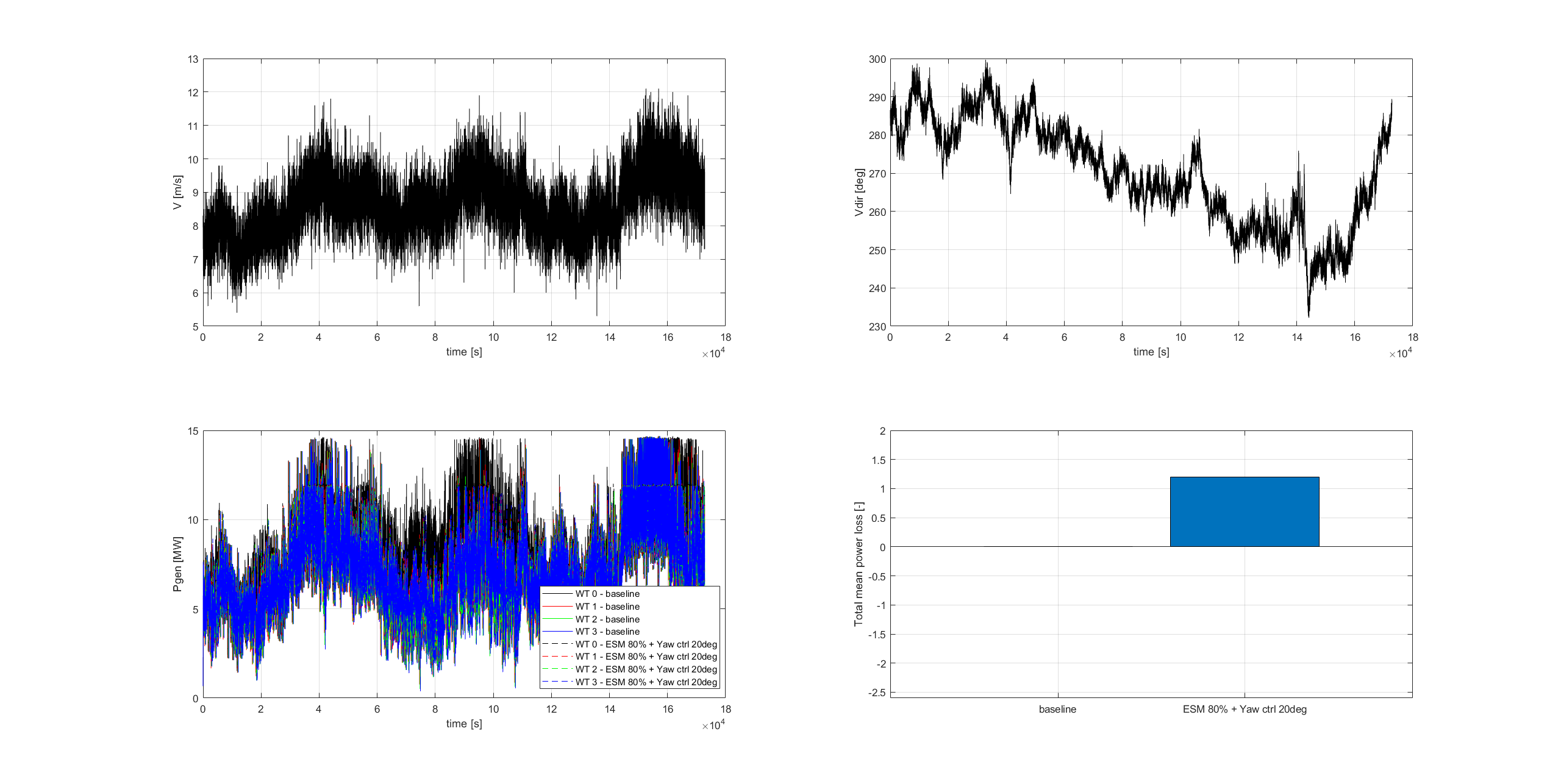

Impact of erosion safe mode (20% derating) combined with sector-based yaw misalignment on an array of 4xIEA-15MW-RWT at 5D with 48h info data from Horns Rev

  • use input file dtu_wpp_ctrl_input.yaml
  • set ‘P_wpp_ref: 0.8’ and uncomment ‘yaw misalignment control’ section and ‘yaw_ctrl_yaw_mis = 20.0’
_images/yaw_ctrl_case_results.png
